Product description

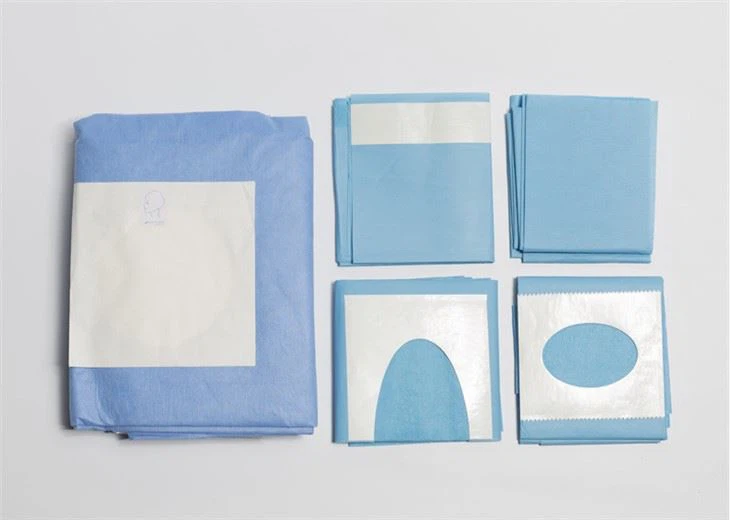

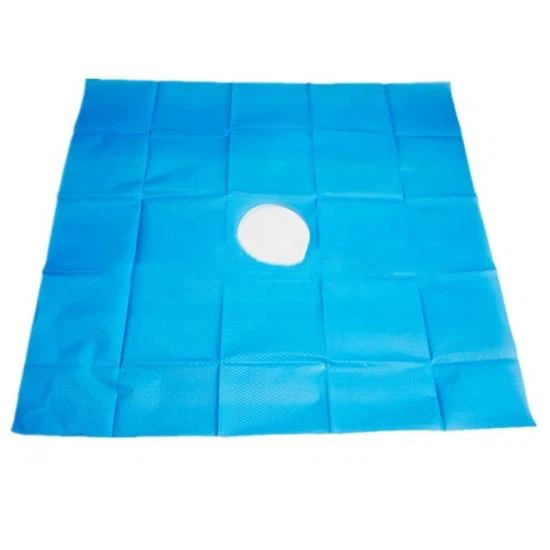

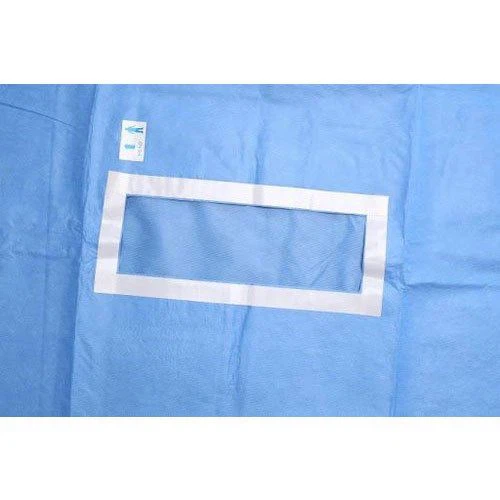

Features: It’s an automatic machine to make surgical hole drapes.
Machine type | DH-C |
Production | 30-50M/MIN |
Voltage | 380V 50Hz |
Overall size | L12000*W4100*H2500mm |
Power | 16KW |
Machine weight | 3500KGS |
Working process
Fabric feeding -adhesive feeding- hole punching-half folding
-vertical folding-cutting-horizontal folding- output
Material Report
NO
|
Material
| Diameter (mm) | Tube Diameter (mm) | Width (mm) | Thickness (mm) | Weight (Kg) |
1. | non woven | 500-1000 | Φ76.2 | 500-2000 | 20-60gsm | 50-80 |
Main Electrical configuration
Item | Quantity | Brand |
0.75KW Servo motor and servo driver | 8sets | Delta |
1.5KW Servo motor and servo driver | 1set | Delta |
2KW Servo motor and servo driver | 2set | Delta |
（100W）5KG Tension controller | 1set | Ruiyu |
Full servo motion controller | 1set | Delta |
Touching Screen | 1set | Delta |
Packing
All the machines will be packed in plywood cases with three procedures of anti-rust:
1.Spray anti-rust oil
2.Put the desiccant
3.Plastic bag seal
