Product description

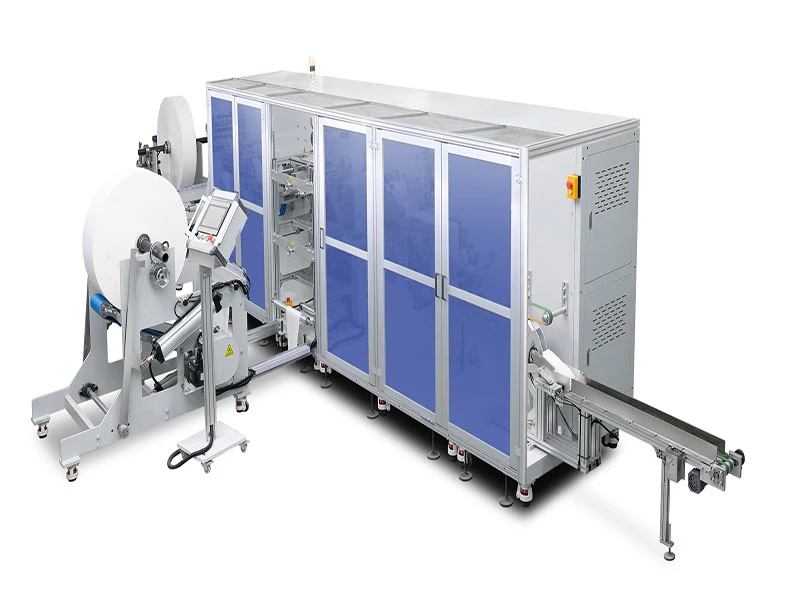

Features: It's a fully automated PLC control and servo motor length adjustable tissue/ non woven hand wipes making machine with the folding and packing function as requested.The length and width of product can be adjustable
| Speed | 350-450pcs/min |
| Dimension | L9400×W3600×H1720(mm) |
| Weight | 2000kgs |
| Power | Maximum power (power at startup): 21 kW; Operating power: 12 kW |
| Voltage | 380v 50-60HZ |
| Air pressure | 0.6-0.8mpa |
PRODUCTS FEATURE
①The machine body features a baked enamel finish, providing corrosion resistance and wear resistance.
②The bottom of the equipment is equipped with universal wheels for easier movement and installation.
③The entire machine is equipped with 11 Xinjie servo motors and a motion bus controller for more precise cutting, smoother operation, and faster speed.
④The entire machine uses imported bearings for smoother operation.
⑤The machine uses pneumatic feeding for easier material loading.
⑥The machine parts are precisely machined, ensuring stable operation and high speed.
⑦Machine process:
Material feeding -> Traction -> Folding -> Cutting -> First insertion board -> Second insertion board -> Conveying-> Stacking
OUR ADVANTAGE
1.R&D Team with the experience more than 20 year.
2.Variety product categories, support non-standard customization with CE Certification.
3.Fast delivery based on the quality management system of IS09001:2015.
4.24/7 online after sales service to ensure the non-stop production of machinery in customer's workshop
Packing
All the machines will be packed in plywood cases with three procedures of anti-rust:
1.Spray anti-rust oil
2.Put the desiccant
3.Plastic bag seal
